M2R Racing KMXR160

THE KMXR160 PIT BIKE Green THE KMXR160 PIT BIKE Red
THE KMXR160 PIT BIKE Green Big Wheel THE KMXR160 PIT BIKE Red Big Wheel

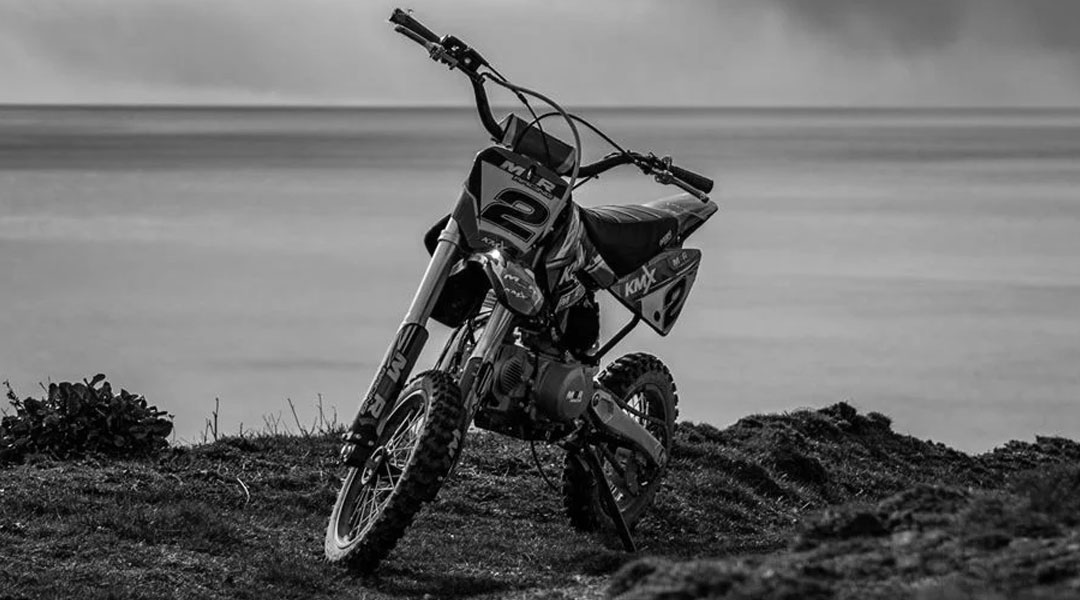

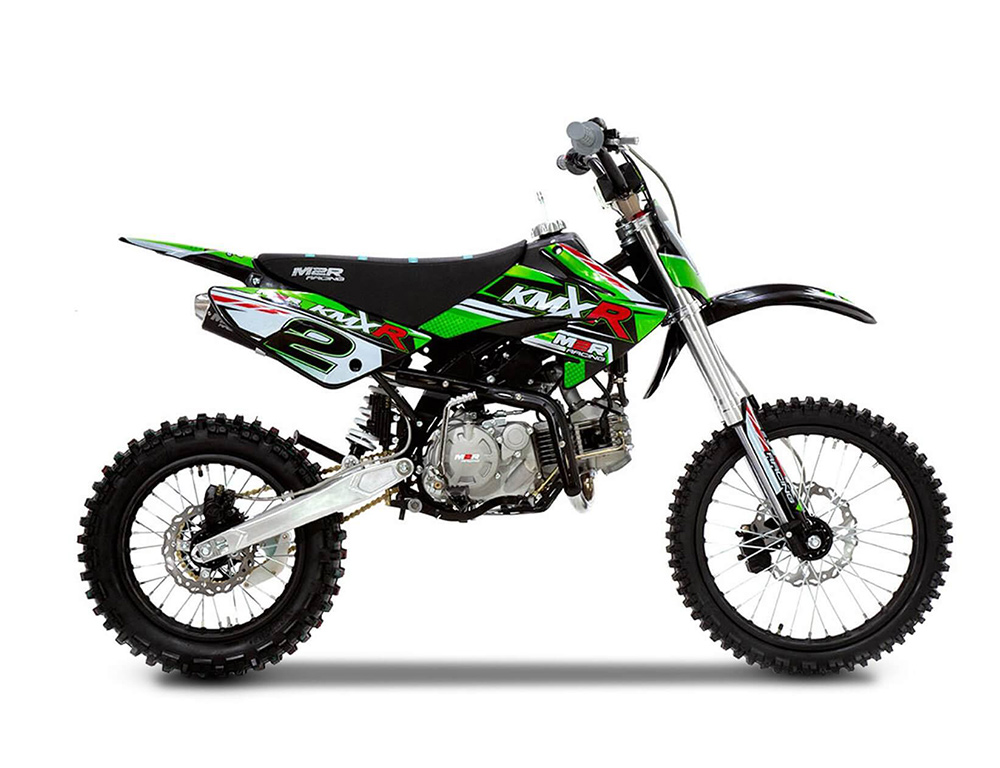

THE KMXR160 PIT BIKE

A bike with enough power and strength to handle the toughest terrain.  The KMXR160 is fitted with an 18 hp oil-cooled high-performance Zongshen 155 RACE engine and the latest CRF70 chassis!

The KMXR160 pit bike is deal for riders that want to step up from from a mini dirt bike or aged 12 and up.

THE KMXR160 PIT BIKE - 160CC 4-STROKE ENGINE THE KMXR160 PIT BIKE - REINFORCED BLACK SDG HUBS

155CC ZONGSHEN Z155 MOTORSPORT RACE ENGINE

It features a 155cc Zongshen Z155 motorsport engine. For pure performance reasons, the gearbox has been fitted with a racing pattern sequence. Neutral at the bottom, then 1-2-3-4 gears up.

REINFORCED BLACK SDG HUBS

The KMXR160 has a 4-speed manual gearbox with gears being a simple arrangement of neutral to fourth – (N -1-2-3-4) or 4 – up.

THE KMXR160 PIT BIKE - HYDRAULIC M2R RACING FRONT FORKS THE KMXR160 PIT BIKE - TONED GRIPPED SEAT THE KMXR160 PIT BIKE - ADJUSTABLE REAR SHOCK

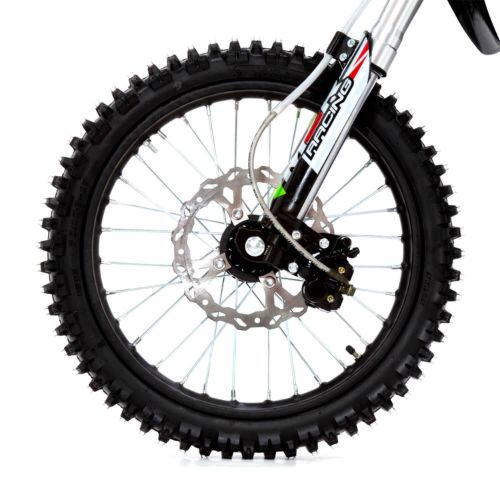

VENTED BRAKE DISKS

If you’re going fast then you want to be able to stop fast. Fitted up front is the same twin pot hydraulic front brake as fitted to our factory works spec supermoto race bikes, including a huge 220mm heat dissipating vented wavy front disc. The rear brake, also hydraulic, is a single pot, again coupled up to a vented 190mm wavy disc.

TONED GRIPPED SEAT

A nice touch at no extra charge is a gripper seat, copied from motocross, it helps the rider keep seated in one position, rather than slipping back and forth along the seat.

SNAP BACK LEVERS

Snap back levers help prevent breakage in the event of an off by folding back on themselves.

THE KMXR160 PIT BIKE - EXTENDED ALUMINIUM SWING ARM THE KMXR160 PIT BIKE - SNAP BACK LEVERS THE KMXR160 PIT BIKE - VENTED BRAKE DISKS

M2R RACING Adjustable Rear Shock

The M2R RACING rear shock is spring adjustable, works well, and offers great feedback to the rider.

Hydraulic M2R RACING Front Forks

The trick anodized gold inverted hydraulic M2R RACING front forks work well, feel great and have plenty of travel keeping the front wheel planted where it’s needed. Triple clamps are the latest design from M2R

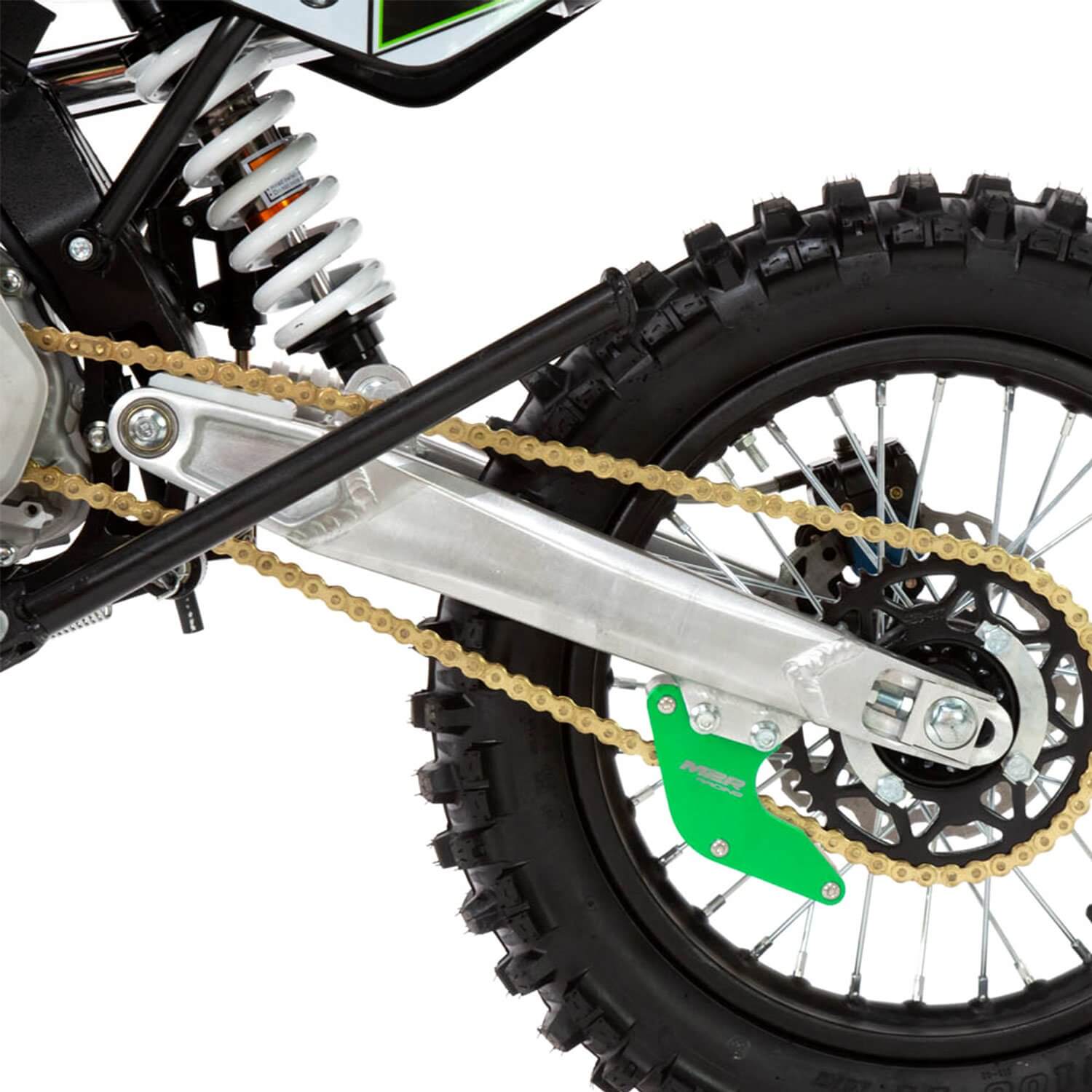

Alloy Extended Swing Arm

The chassis also features an extended swing arm which helps with stability at speed over whoops and ruts.

Bike Specs

Brakes Disc Brakes
Carburetor Molkt
Clutch Manual
Cooling Oil Cooled
Dimensions
Standard L160cm – W34cm – H108cm
Big Wheel L180cm – W34cm – H114cm
Engine Oil SAE 10W-40
Engine Spec 4 Stroke – Single Cylinder
Engine Type Petrol Engine
Frame Chromoly Steel
Fuel Unleaded
Fuel Capacity 3.5 Litres
Gears N-1-2-3-4
Gross Weight 65 Kg
Max Rider Weight
Standard 90 Kg
Big Wheel 100 Kg
Motor Size 160cc
Requires Some Assembly Assembly: Handlebars – Front Wheel – Front Mudguard – Rear Suspension – Full Check – Oil Change
Rim Size
Standard F: 14 inch – R: 12 inch
Big Wheel F: 17 inch – R: 14 inch
Seat Height
Standard 82cm
Big Wheel 86cm
Start Type Kick Start – Kick in Gear
Suitability Age 14+
Suspension Rear piggyback shock / front hydraulic forks
Terrain Full Off Road
Throttle Type Twistgrip
Top Speed Geared for MX use
Tyres
Standard Aggressive MX tyres (F: 14 inch – R: 12 inch)
Big Wheel Aggressive MX tyres(F: 17 inch – R: 14 inch)
Warranty Competition bike – 30 days engine parts only
